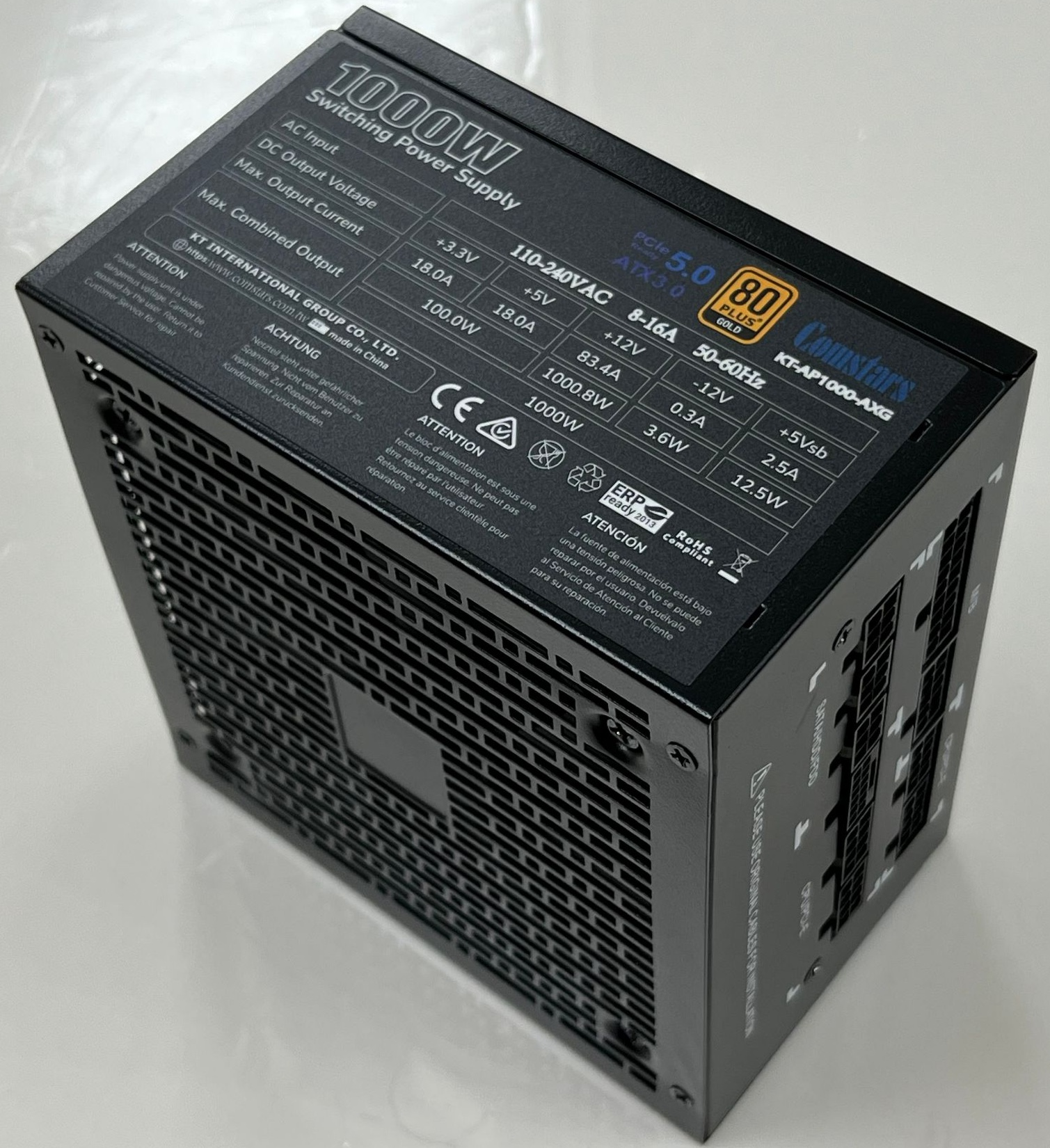

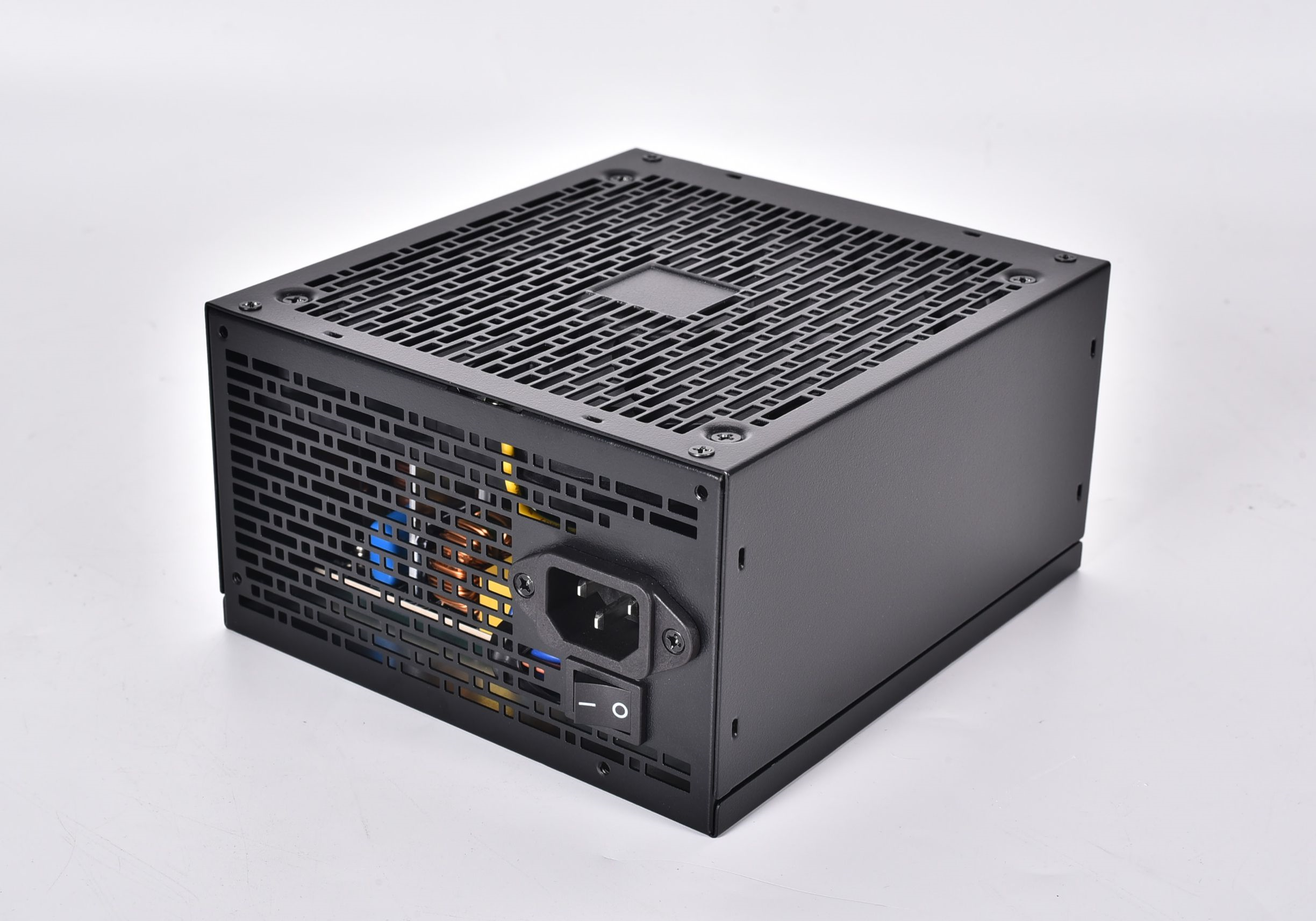

• ATX-AxG Module Series
  • Standard INTEL ATX 12V 3.1v Gen5.1 form factor.
  • Active PFC Power Factor : >0.9
  • LLC Full bridge resonant structure DC-DC synchronous rectification design
  • 12VHPWR connector to up to 600W
  • Dimension : 150(W)*86(H)*165(L)mm
  • Full Modular with black flat cables
  • Efficiency : 80PLUS Gold
  • Cooling fan : 140/120mm FDB Silent cooling fan
  • Full protection features of SCP, OVP, OCP, OPP
  • MTBF : >10K hours at full load

 Ordering information :



  KT-AP1200-AxG : 1200Watt.



  KT-AP1000-AxG : 1000Watt.



  KT-AP850-AxG : 850Watt.



  KT-AP750-AxG : 750Watt.









More detailed information is available upon request

specification can be updated without notification
